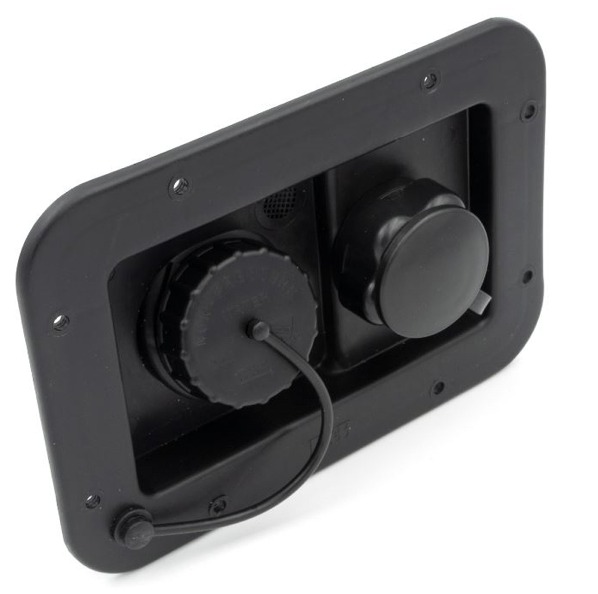

City/Gravity Water Hatch – Black, Thetford 94223

$20.68

City Water Fill / Gravity Hatch Type – Without Door

RVPC # 61773MFG # 94223CAT # 55-5270

Description

Fresh Water Inlet Thetford 94223
Used For RV Fresh Water System; City/ Gravity Hatch Without Door;
Use With Either 1-1/4 Inch Or 1-3/8 Inch Water Fill Hose
Cutout Dimension: 3-3/4 Inch Height x 6 Inch Width
Overall Dimension: 5-5/16 Inch Height x 7-9/16 Inch Width x 2-1/2 Inch Depth
Plastic Check Valve With 1/2 Inch Male Pipe Thread (MPT)
Color: Black
UV And Impact Resistant
IAPMO/ NSF/ CSA/ TEI Certified
With 3/8 Inch Tank Vent Connection
B&B Cross Reference 497-AB-3P-A




Height (IN): 5-5/16 Inch
Compatibility: RV Fresh Water System
Type: Gravity Hatch
Inlet Size: 1/2 Inch
Inlet Connection Type: Male Threads
Outlet Size: 1-1/4 Inch Or 1-3/8 Inch
Outlet Connection Type: Not Applicable
Cutout Size (IN): 3-3/4 Inch Height X 6 Inch Width
Diameter (IN): Not Applicable
Width (IN): 7-9/16 Inch
Color: Polar White
Material: Plastic Check Valve
With Built-In Check Valve: Yes
With Dust Plug: Yes



Features
  • Direct OEM Replacement
  • UV And Impact Resistant
  • Resistant To Road Salts And Acids
  • Limited Lifetime Warranty
