Tri-Mark Exterior Paddle Lock Only with 2 inch Deadbolt, 36285-06

Description

This exterior lock will only work if the 5 digit code that is stamped on the actuator on the inside of the interior handle is 21499 or 21141

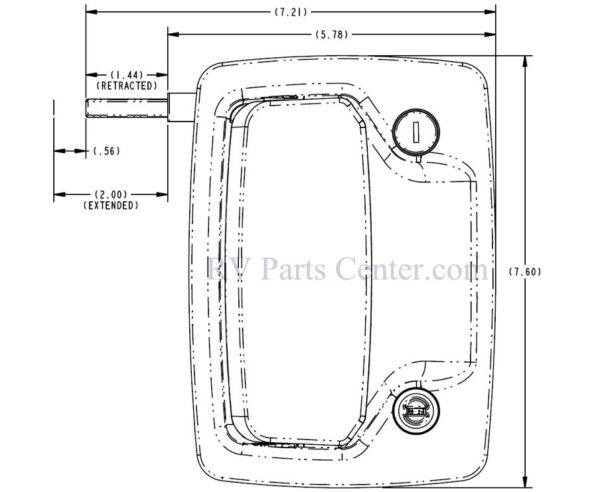

Exterior door handle measures 7.6′ Tall by 5.4′ Wide

The lock needs to be removed to measure the length of the deadbolt

On the lock: the deadbolt protrudes 2 inches and extends to 2-1/2.

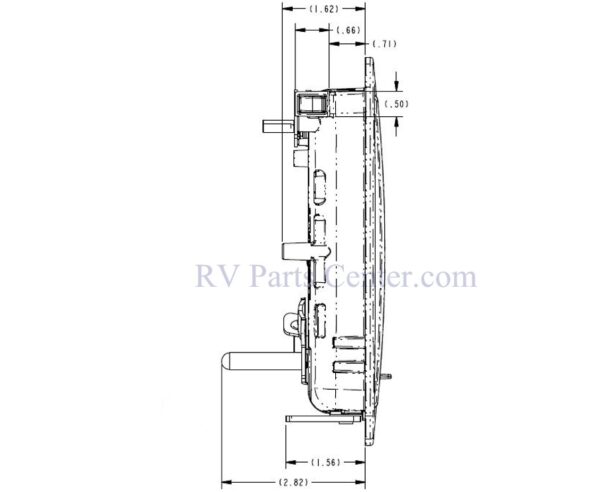

The padel latch (third picture) is 1.580 inch. If it’s shorter see  36283-01

NOTE 1: This is a replacement exterior lock assembly only. Included are: 2 sets of keys and the lock itself.

NOTE 2: There will be no threads in the screw holes of this new lock. The screw holes are meant to be taped by the end user.

Please call or email us if you are not sure. There is a 20% restocking fee on this item.
