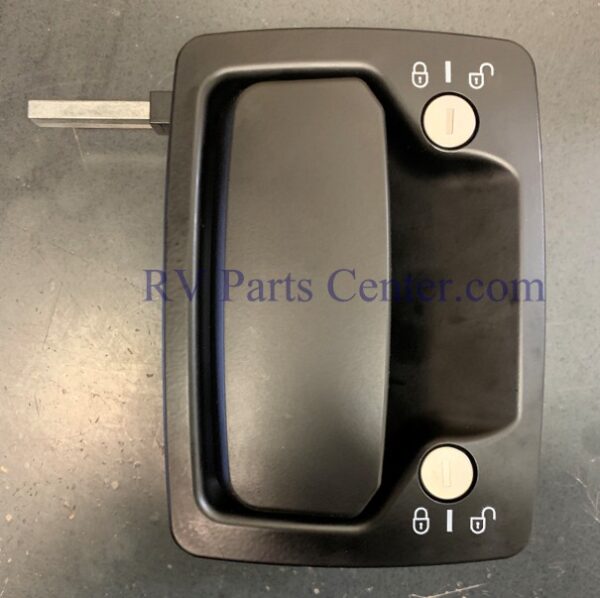

Tri-Mark Exterior Paddle Lock Only with 2 inch Deadbolt, 36286-05

Description

This lock will only work if the 5 digit number on the label that is the back of the exterior is 36286-05

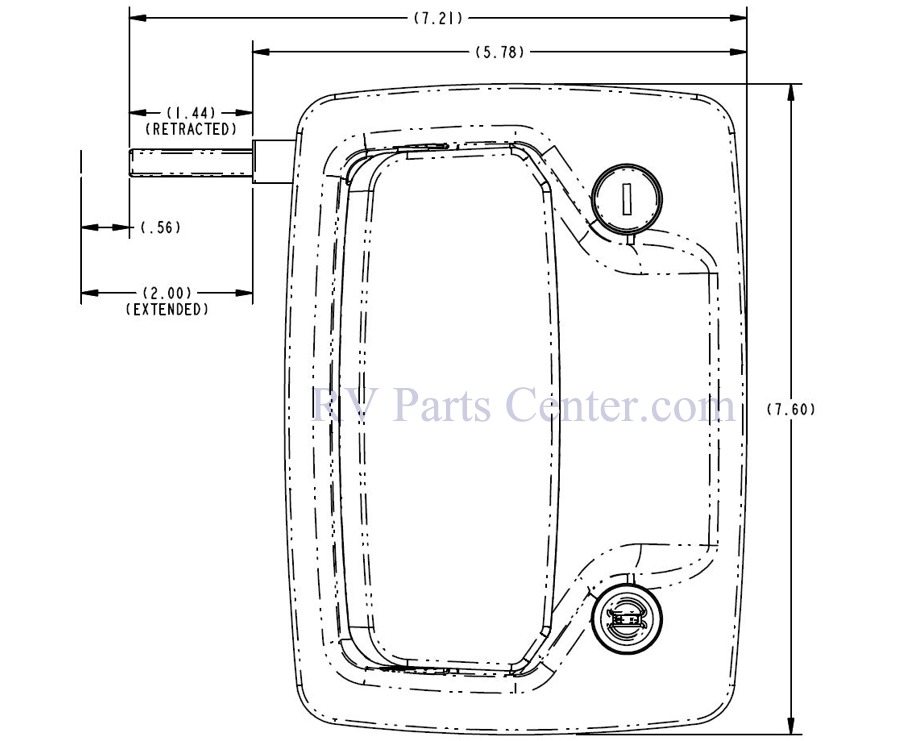

Exterior door handle measures 7.6′ Tall by 5.4′ Wide

The lock needs to be removed to measure the length of the deadbolt
On the lock: the deadbolt protrudes 2 inches and extends to 2-1/2

NOTE 1: This is a replacement exterior lock assembly only. Included are: 2 sets of keys and the lock itself.

NOTE 2: There will be no threads in the screw holes of this new lock. The screw holes are meant to be taped by the end user.

Please call or email us if you are not sure. There is a 20% restocking fee on this item.

RV Parts Center (714) 703-8200
