Actuator 12 Volt, TriMark 36517-01

Description

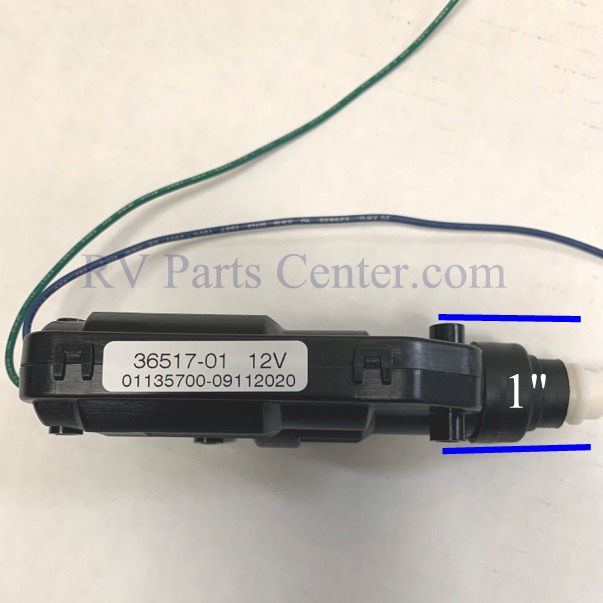

TriMark Compact Style Power Lock Actuator 36517-01

Includes:

Actuator only (mounting harware, receiver box and remotes sold seperatly)

Installation

• TriMark power actuators are easy to install either by integrating mounting directly into available TriMark latches or handles
• 12 volt supply (9-16 VDC)
• Each actuator can draw up to 4.0A (nominal) of current – proper sized and located circuit protection is required at triggering device (switch/relay) that controls the actuator

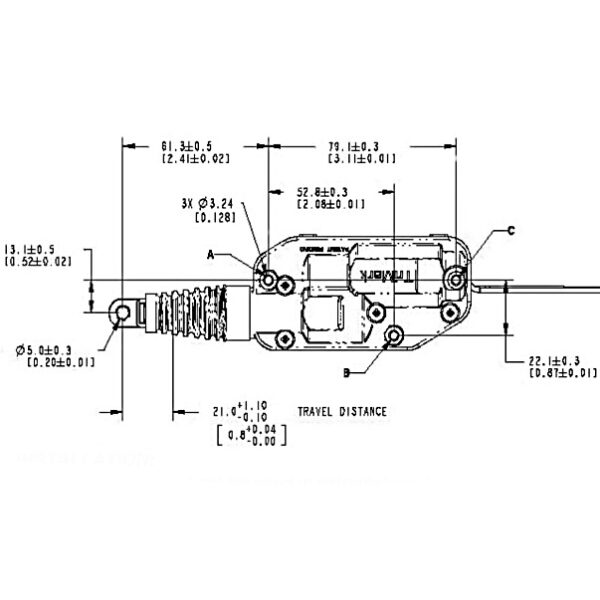

• Long travel distance – .83 inches (21mm)
• Motor is equipped with 12V thermal protection for excessive heating due to extreme usage such as rapid, frequent operations or sustained activation, which can cause premature motor failing or motor seizing
• Motor varistor for electrical transient noise reduction
• Actuator is equipped with a clutch mechanism for soft starts/stops and allows for manual override with key
• Includes a rotatable/detachable tip for ease of application
• 20 gauge, UL 1007 compliant
